Hypertherm – Plasmatech

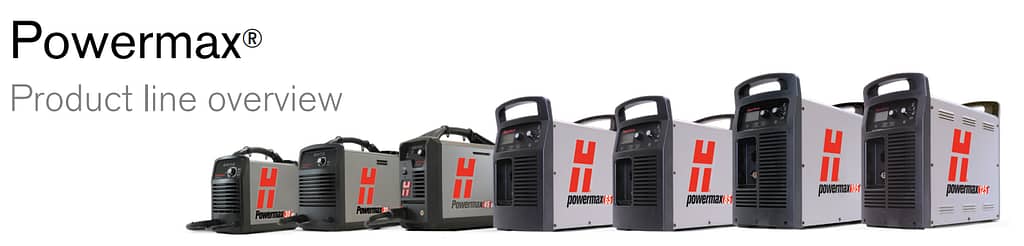

	Powermax 30 Air	Powermax30 XP	Powermax45 XP	Powermax65 SYNC	Powermax85 SYNC	Powermax105 SYNC	Powermax125
Cut capacity @ 500mm / min	8 mm	10 mm	16 mm	20 mm	25 mm	32 mm	38 mm
Cut capacity @ 250mm / min	10 mm	12 mm	22 mm	25 mm	32 mm	38 mm	44 mm
Severance capacity @ 125mm/ min	16 mm	16 mm	29 mm	32 mm	38 mm	50 mm	57 mm
Pierce capacity		Remote	12 mm	16 mm	20 mm	22 mm	25 mm
Gouging metal remove rate (kg/hr)			3.2	4,8	8,8	9,8	12,52
Input voltages	120-240V, 1-PH	120-240V, 1-PH	240V, 1 PH or 400V-3PH	400V, 3-PH	400V, 3-PH	230-400V, 3PH / 400V, 3-PH	400 V, 3-PH
Output current	15-30A	15-30A	10-45A	20-65A	25-85A	30-105A	30-125A
Duty cycle
Single phase duty cycle	35% @ 240V, 20% @ 120V	35% @ 240V, 20% @ 120V	60% @ 41A, 100% @ 32A	N/A	N/A	N/A	N/A
Three phase duty cycle	N/A	N/A	50% @ 45A, 100% @ 32 A	50% @ 65A, 100% @ 46A	60% @ 85A, 100% @ 65A	80% @ 105A, 100% @ 94A	100% @ 125A
Weight	13,5 kg	9,5 kg	15 kg	26 kg	28 kg	45kg (Autovoltage), 41 kg (400V)	48,9 kg
Gas supply	Integrated	Clean, dry, oil-free air or nitrogen	Clean, dry, oil-free air or nitrogen	Clean, dry, oil-free air or nitrogen	Clean, dry, oil-free air or nitrogen	Clean, dry, oil-free air or nitrogen	Clean, dry, oil-free air or nitrogen
Cutting		113,3l/min @ 5,5 bar	188l/min @ 5,9 bar	189l/min @ 5,6 bar	189l/min @ 5,6 bar	217 l/min @ 5,9 bar	260l/min @ 5,9 bar
Airflow Requirements: Cutting			170l/min @ 4,1 bar	212 l/min @ 4,8 bar	212 l/min @ 4,8 bar	227 l/min @ 4.8 bar	212l/min @ 4,1 bar
